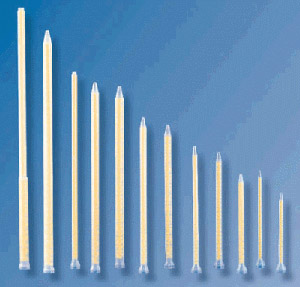

Mixer
HOME > Product > Dispenser Accessory > Mixer
Unit: mm
| Model | Body Housing | Vane | End Thread | |||
| O.D. | Length | O.D. | Number | |||
| Dynamic (S) | RS 9-08 | 12.65 | 69.5 | 9.25 | 8 | 1/8" |
| RS 9-16 | 12.65 | 102.5 | 9.25 | 16 | 1/8" | |
| RS 9-26 | 12.65 | 145 | 9.25 | 26 | 1/8" | |
| RS 12-16 | 16 | 126.5 | 12.6 | 16 | 1/8" | |
| RS 12-26 | 16 | 178 | 12.6 | 26 | 1/8" | |
| Dynamic (M) | RM 12-16 | 16 | 126.5 | 12.6 | 16 | 1/8" |
| RM 12-26 | 16 | 178 | 12.6 | 26 | 1/8" | |
| RM 17-16 | 21 | 150 | 17.7 | 16 | 1/8" | |
| RM 17-26 | 21 | 216 | 17.7 | 26 | 1/8" | |
| Static | S6-08 | 9.45 | 87 | 6.25 | 8 | 1/8" |
| S6-30 | 9.45 | 186 | 6.25 | 30 | 1/8" | |
| S6-36 | 9.45 | 222 | 6.25 | 36 | 1/8" | |
| S6-42 | 9.45 | 252 | 6.25 | 42 | 1/8" | |
| S9-24 | 12.45 | 230 | 9.25 | 24 | 1/8" | |
| S9-30 | 12.45 | 238 | 9.25 | 30 | 1/8" | |
| S9-36 | 12.45 | 280 | 9.25 | 36 | 1/8" | |
| S9-42 | 12.45 | 320 | 9.25 | 42 | 1/8" | |
| S12-24 | 16.55 | 280 | 13 | 24 | 1/8" | |
| S12-30 | 16.55 | 285 | 13 | 30 | 1/8" | |
| S12-36 | 16.55 | 340 | 13 | 36 | 1/8" | |
| S12-42 | 16.55 | 390 | 13 | 42 | 1/8" | |
