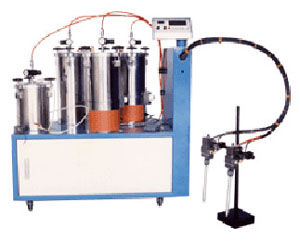

HOME > Product > Two Component Dispenser > 2 Valves 2 Color Dispenser

　

Application: Automobile battery red and black terminal port potting.
　

Material applicable: Epoxy, Silicone, PU, Acrylic
　
　 Shot volume: 2~100cc 　
　 Accuracy: +1% 　
　 Tank size: 15L per tank 　
　 　 　
　 Feature& Benefits: 　
　

●Synchronized 2 auto valves applies to Wason G280 2-component dispenser.

 　
　 ●Independent 4 metering pumps for precise ratio and volume control. 　
　 ●Error message warnings for each pump separately. 　
　 ●Micro-processor controlled twin-motor for ratio adjustment and monitoring. 　
　 ●Suitable for automobile battery cover Red & Black terminals potting. 　
　 　 　
　 　 　
　 Optional Features 　
　

D. Dynamic mixing valve: a high speed air motor applied for mixture of resin and hardener when the mixing ratio or viscosities are distinct.

 　
　

V. Vacuum Degassing: Vacuum pump is utilized for material tank de-gassing and for vacuum suction refill.

 　
　

A. Auto-refill: This is suitable for user with high frequency of refilling workload. This function is completed by a specially designed pneumatic transfer pump, which can reach to the material ram and pumping liquid to dispenser pressure tanks.

 　
　 　 　
　
　
